Model：MQ-ZT-393

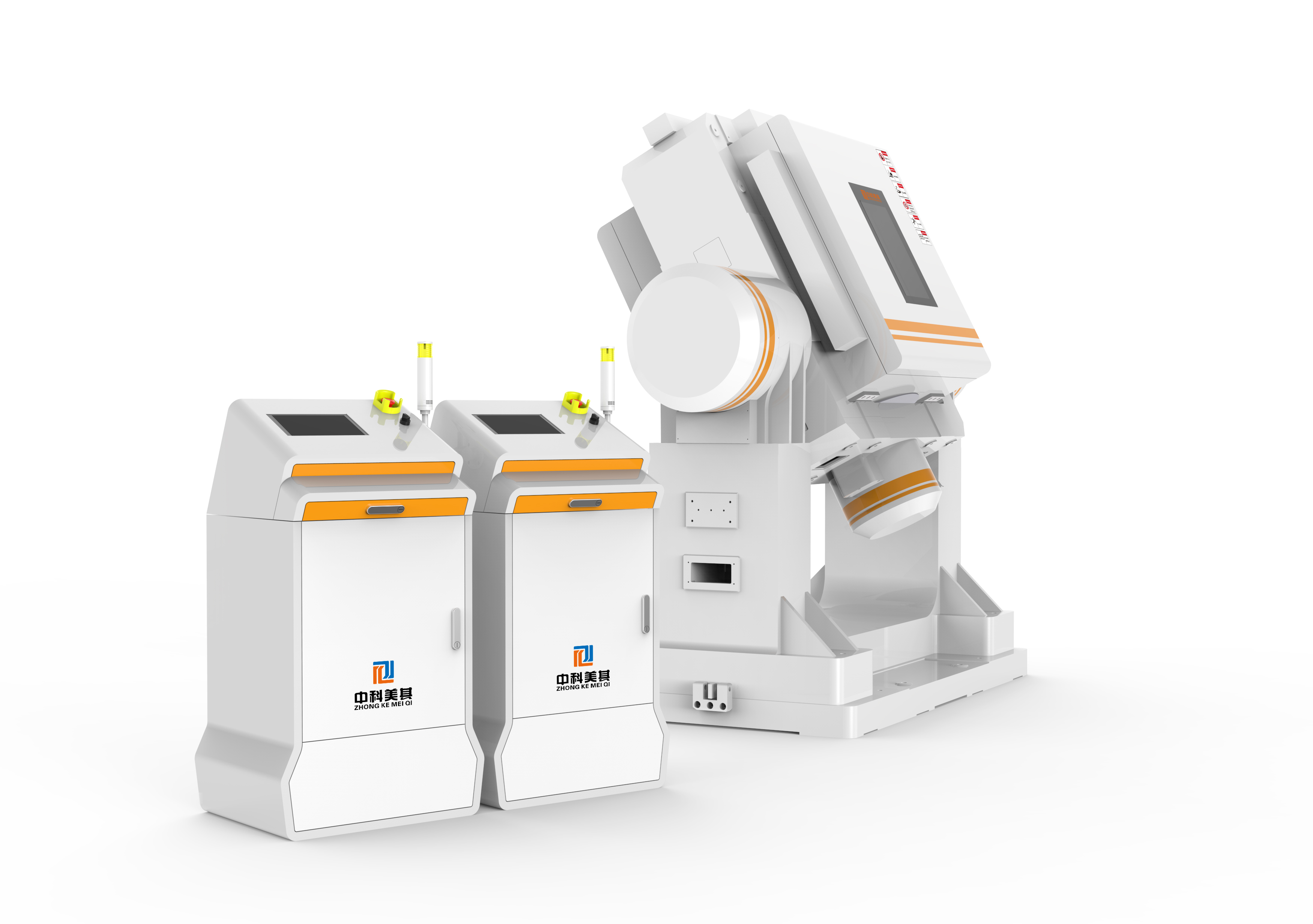

Temperature Test Chamber for Double-Axis Rate Table
Rich experience: years of experience in designing and manufacturing temperature control test chamber for rate table system, strong technical team support
Complete set of products: temperature control test chamber for single-axis, double-axis, three-axis rate table, multi-spec product
High efficiency and energy saving: reduce power consumption by more than 30% during low temperature test
Excellent performance: performance indicators are better than national military standards
Compact and lightweight: compact and lightweight
Optimize the air duct: based on the professional CFD fluid mechanics design, the wind path is more reasonable
Simple operation: user-friendly operation interface, start and stop, no professional training required
Rich interface: Provide drivers to meet users' secondary development needs
Drying function: dry air pressure dew point temperature -70 ° C, no condensation and fogging
Multiple protection: ensure the safety of personnel, test pieces and equipment, worry-free use
Temperature Test Chamber for Double-Axis Rate Table System
|
Product name |
Temperature Test Chamber for Double-Axis Rate Table System | ||||
|
Nominal volume |
Unit/L |
100 |
216 |
343 |
512 |
|
Inner size |
Width × depth × height (mm) |
450×450×500 |
600×600×600 |
700×700×700 |
800×800×800 |
|
Turntable type |
Single-axis turntable, double-axis turntable, three-axis turntable |
||||
|
Corner range |
Inner Ring: Continuous Unlimited; Outer Ring: Continuous Unlimited |
||||
|
Performance index |
Temperature range |
A,-60℃~100℃ B,-80℃~100℃ |
|||
|
Temperature fluctuation |
±0.5℃ |
||||
|
Temperature uniformity |
≤±2.0℃ |
||||
|
Temperature deviation |
≤±2.0℃ |
||||
|
Heating rate |
≥2.0/5.0/10.0℃/ Min |
||||
|
Cooling rate |
≥2.0/5.0/10.0℃/ Min |
||||
|
Refrigeration method |
Compressor refrigeration |
||||
|
Cooling method |
Air-cooled/water-cooled |
||||
|
Unit installation method |
Indoor integrated, indoor split, outdoor split |
||||
|
Main components
|
Control System |
Siemens programmable controller + touch screen + independent development program |
|||
|
Heating system |
Fully independent system, high efficiency stainless steel finned tube heater |
||||
|
Humidifying system |
Imported electronic humidity sensor |
||||
|
Cooling System |
Importer-type scroll compressor |
||||
|
Circulatory system |
Temperature and low noise motor, stainless steel centrifugal impeller |
||||
|
Main materials |
Carton material |
High-quality carbon steel plate, phosphating electrostatic spray treatment |
|||
|
Inner box material |
International standard SUS304# stainless steel mirror treatment |
||||
|
Insulation material |
Hard flame retardant polyurethane foam |
||||
|
Sealing material |
High and low temperature environment-friendly silicone rubber seal |
||||
|
Cabinet and turntable connection |
Bottom flexible seal shaft hole |
||||
|
Voltage |
220±10% VAC, L+N+G; 380±10% VAC, 3L+N+G |
||||
|
Communication Interface |
RS232 communication interface, USB data interface |
||||
|
Standard configuration |
Sample holder 1 set, test lead hole 1 set |
||||
|
Optional accessories |
Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge |
||||
|
safety devices |
Leakage, short circuit, motor overheating, heater overheating, compressor overpressure, overload, multiple overtemperature protection |
||||
|
Environmental requirements |
Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around; |
||||
|
Note: 1.the temperature performance parameters are in the ambient temperature of 25 °C, studio with no load table, effective uniform area, in accordance with GB/T5170.2-2008 test; 2.can be customized according to the specific requirements of non-standard laboratories; 3. This technical information is subject to change without notice. |
|||||
Standard Compliance :
1.GB/T 10589-2008: cryogenic test chamber technical conditions
2.GB/T 10592-2008: high and low temperature test chamber technical conditions
3. IEC60068-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
4. IEC60068-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
5. IEC60068-2-14 Environmental testing for electric and electronic products-Part 2: Test Methods-Test N: Change of temperature
6. MIL-STD-810F-501.4 High temperature test
7. MIL-STD-810F-502.4 Low temperature test
8.GJB 360B-2009: test methods for electronic and electrical components
9.JJF 1101-2003: environmental and test equipment temperature and humidity
calibration specifications
10.GB/T 5170.2-2008: test method for environmental test equipment of electric and electronic products Temperature test equipment
