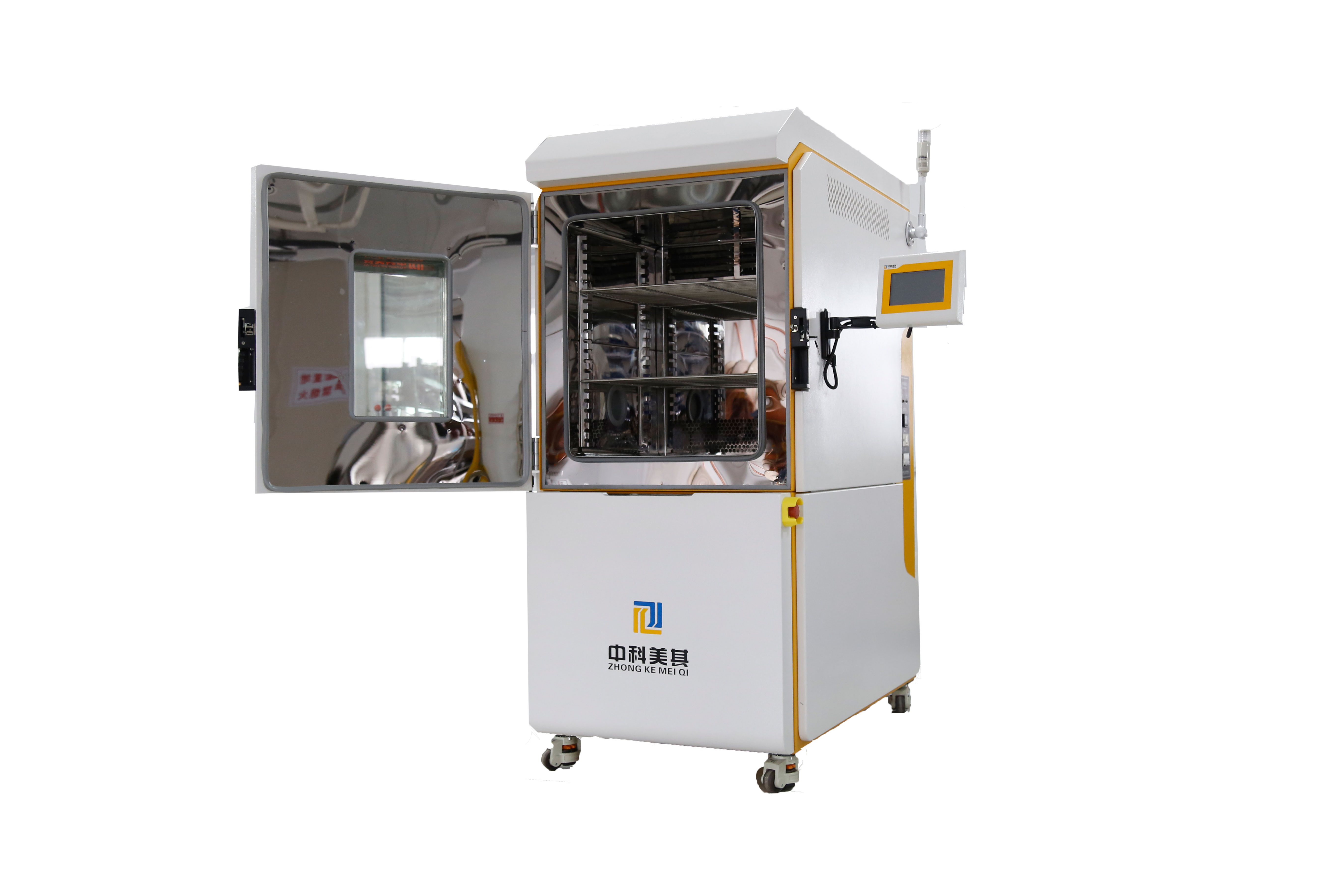

100L Rapid Temperature Change Test Chamber
The rapid temperature change test chamber is mainly used for electrical and electronic products, components, components, metal materials and their adaptability tests and stress screening tests under simulated or rapidly varying climatic conditions, physical and other The relevant performance is tested and tested.

Model:MQ-TQH-100

Update time:[2019-10-24]
Feature Parameter Standard Compliance

250L Rapid Temperature Change Test Chamber

Rapid Temperature Change Test Chamber



Product name

Rapid temperature change test chamber

Product number

MQ-TQH100

MQ-TQH250

MQ-TQH500

MQ-TQH1000

MQ-TQH2400

Nominal volume

unit/L

100

250

500

1000

2400

Inner size

Width × depth × height (cm)

45×45×50

60×60×70

75×75×90

100×100×100

130×140×130

External size

Width × depth × height (cm)

65×120×145

80×140×170

95×160×190

120×180×195

180×315×250

Performance

index

Temperature range

A,-40℃~150℃   B,-70℃~150℃  C,-90℃~150℃  D,-120℃~150℃

Temperature fluctuation

±0.5℃

Humidity fluctuation

≤±2%RH

Temperature uniformity

≤2.0℃

Temperature deviation

≤±2.0℃

Heating rate

5,10,15,20,25,30℃/ min

Cooling rate

5,10,15,20,25,30℃/ min

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled/water-cooled

Standard Compliance:

1. IEC60068-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC60068-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. MIL-STD-810F-501.4 High temperature test
4. MIL-STD-810F-502.4 Low temperature test
5.GB/T 10589-2008: cryogenic test chamber technical conditions
6.GB/T 10592-2008: high and low temperature test chamber technical conditions
7.IEC60068-2-14 Environmental testing - Part 2-14 : Tests – Test N:Change of temperature
8.GJB 360B-2009: test methods for electronic and electrical components
9.JJF 1101-2003: environmental and test equipment temperature and humidity calibration specifications
10.GB/T 5170.2-2008: test method for environmental test equipment of electric and electronic products temperature test equipment
