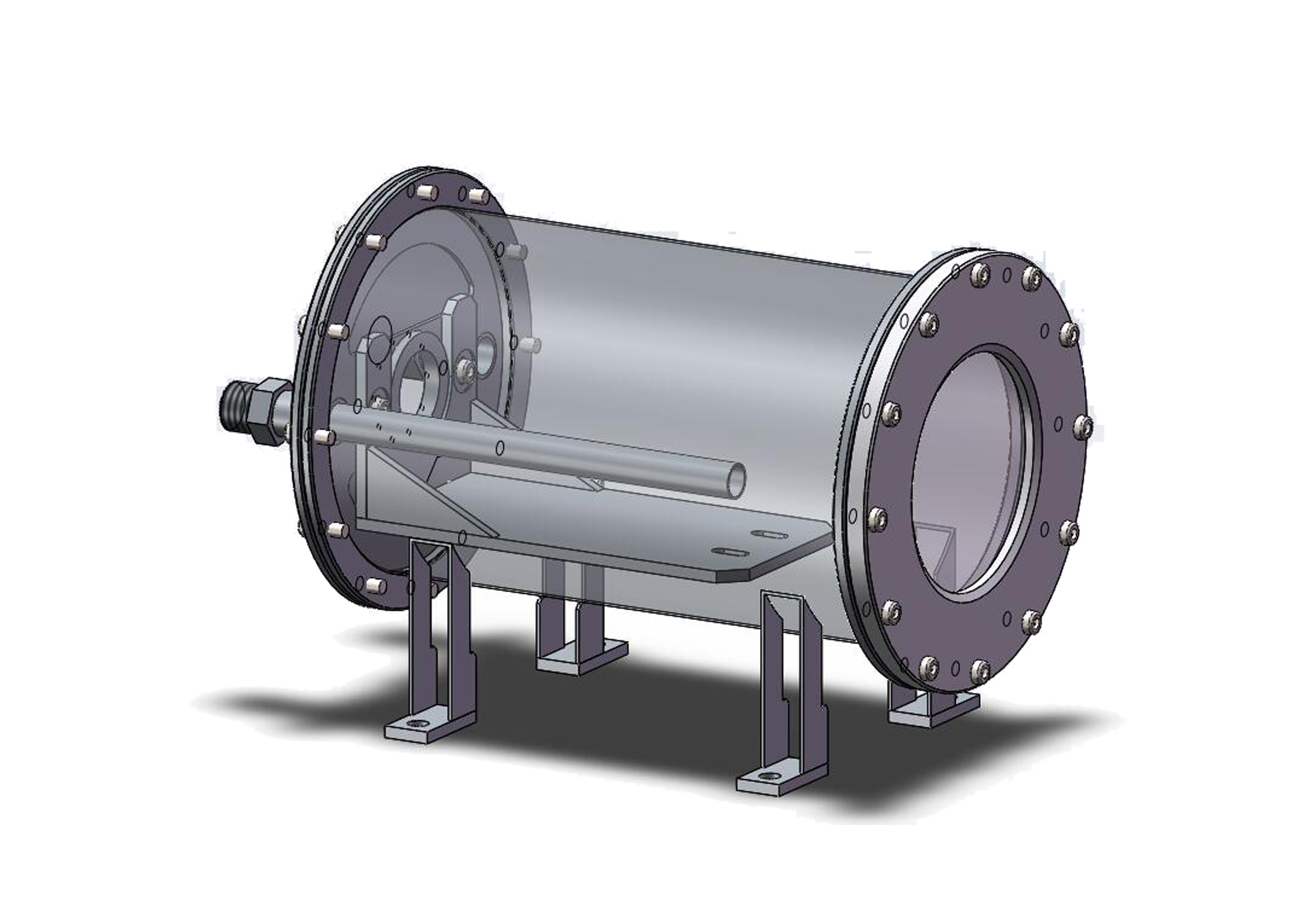

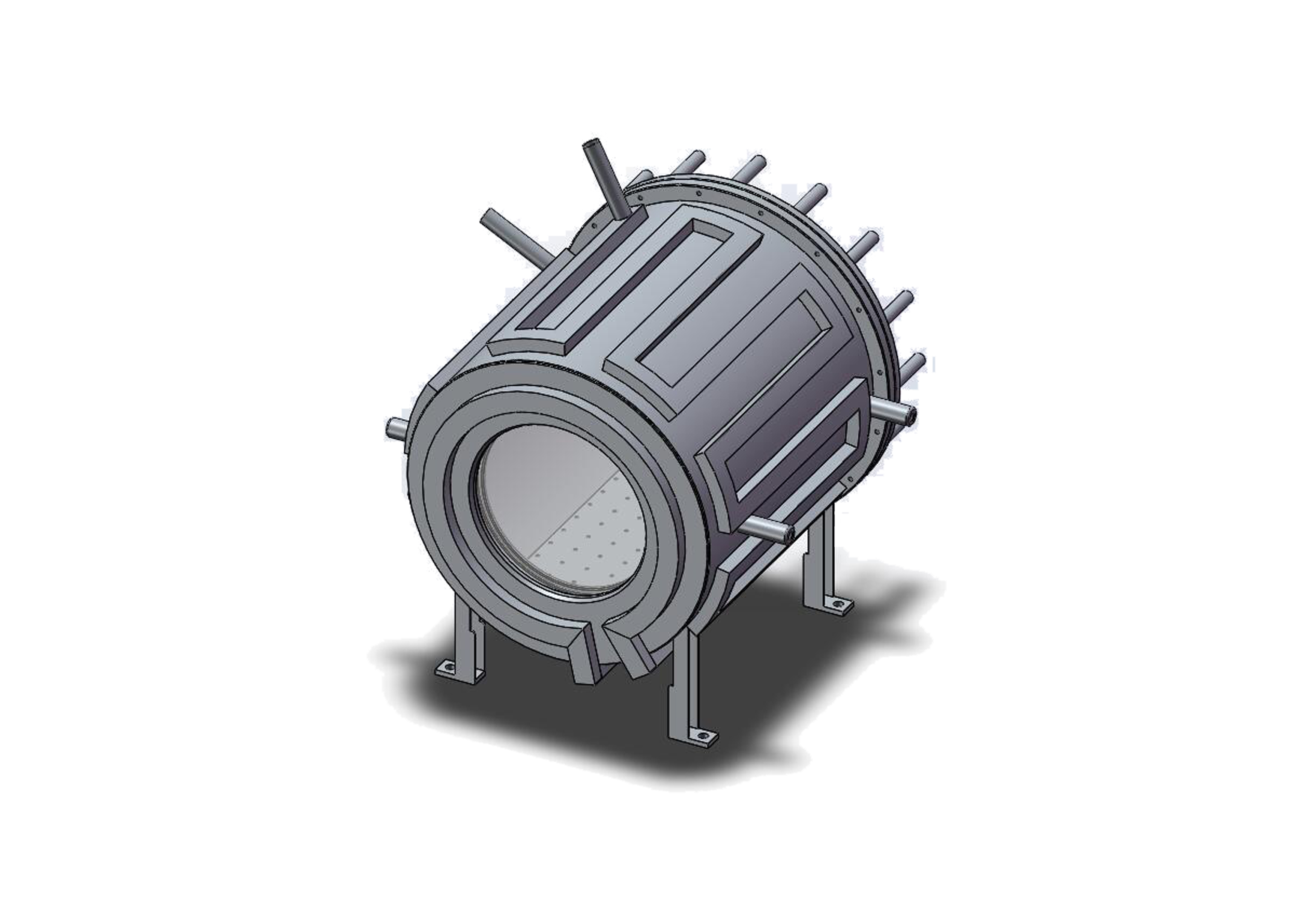

Photogrammetry Testing Equipment Protective Cans

Photogrammetric system protective cans are widely used in spacecraft deformation measurement, large-scale aircraft wing dynamic measurement, large-scale radar antenna array surface measurement, satellite antenna thermal vacuum deformation measurement and other aviation, aerospace and satellite communications. Aiming at the particularity of thermal deformation photogrammetry in space, a vacuum protection tank for thermal deformation measuring camera with monitoring system was designed to ensure that the camera of thermal deformation measurement system can work normally under the hot vacuum environment. It is also used for the protection of the measuring camera in large-scale normal-pressure high-low temperature environment test equipment to ensure the normal operation of the camera under normal pressure and high temperature environment.

Model：MQ-ATMO

Inquiry

Feature Parameter Standard Compliance

Photogrammetry Testing Equipment Protective Cans

Product features:

1)Has the characteristics of strong thermal shock resistance, reliable sealing and long service life
2)Protective cans are installed in various ways
3)Custom imported optical quartz glass to ensure accurate and effective measurement
4)Reserve camera monitoring interface for transmitting camera data
5)Temperature guarantee device is stable and reliable, ensuring long-term operation

Photogrammetry Testing Equipment Protective Cans

Technical indicators:

Product name		Photogrammetric system protective cans
Product number		MQ-ATMO	MQ-VACU
Working environment		Atmospheric high and low temperature environment	Vacuum high and low temperature environment
Main Specifications	Tank size	φ300mm×300mm	φ400mm×300mm
	Vacuum outside the tank	≤1.3×10-3Pa
	Outside temperature range	-160℃~+150℃
	Tank temperature range	+15℃~+30℃
Protective tank weight		≤20kg (without camera)		≤25kg (without camera)
Protection tank body material		stainless steel
Window material		Imported optical quartz glass
Voltage		220±10% VAC L+N+G
Standard configuration		One set of camera fixing fixtures in the tank, one copy of the manual and one copy of the certificate
safety protection		Tank temperature protection, over temperature alarm
Optional accessories		Tank rotating table, communication interface

Standard Compliance :

The use environment of the protective tank under atmospheric pressure shall comply with the "GJB 150A Laboratory Test Method for Military Equipment Environment"
The use environment of protective cans under vacuum should be in accordance with the "GJB 1027A-2005 Test Requirements for Vehicles, Upper Classes, Spacecrafts"
