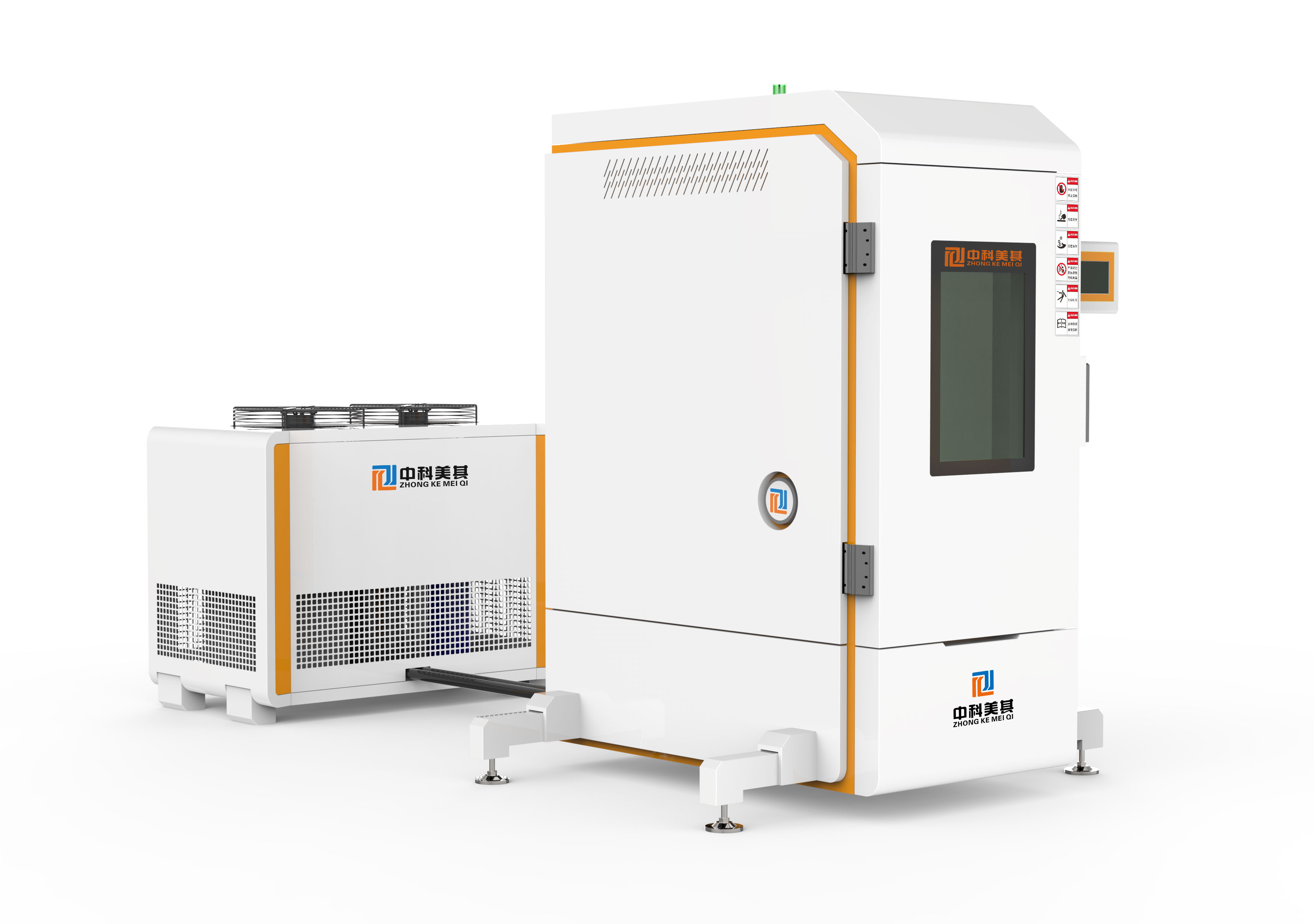

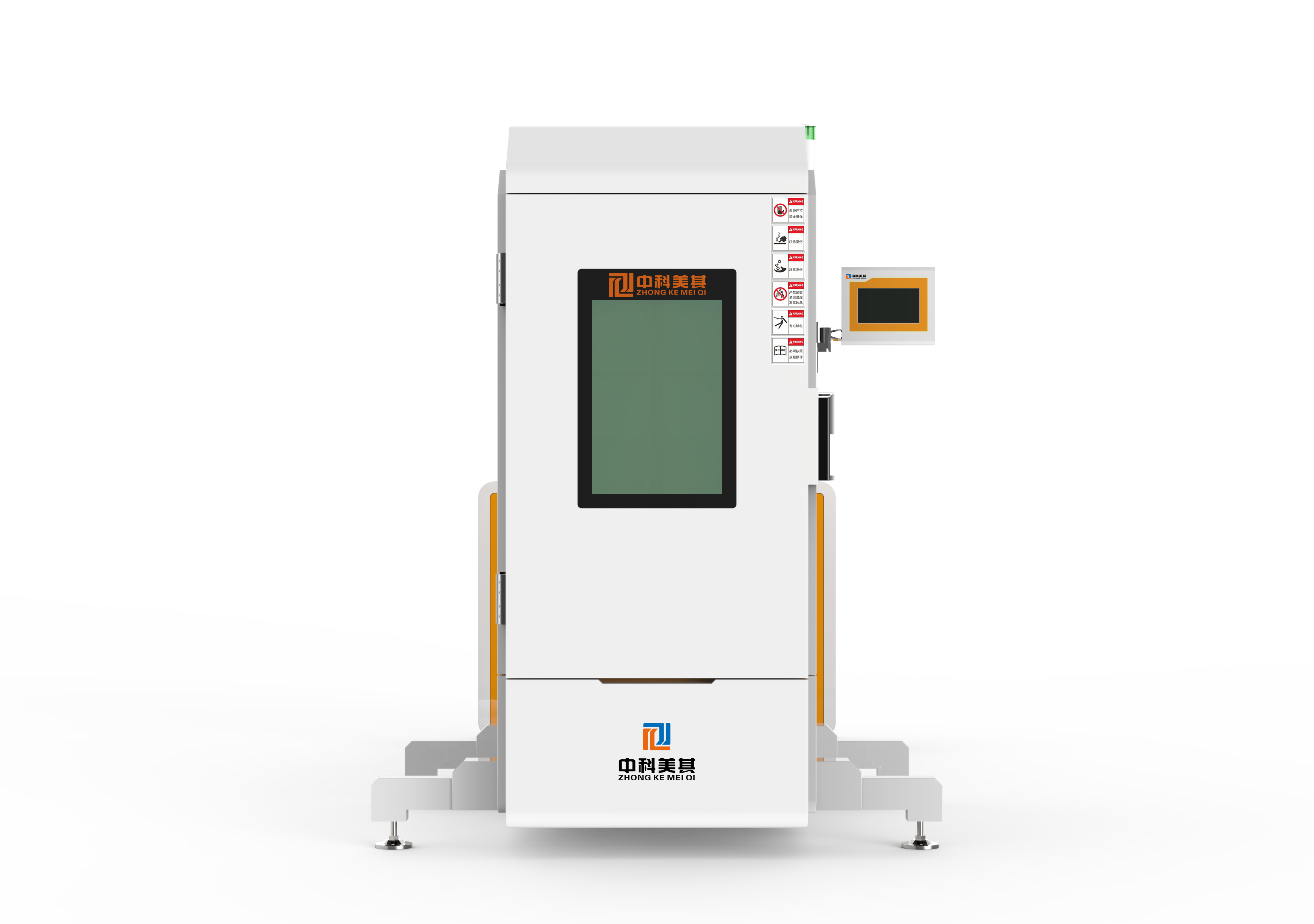

Temperature Test Chamber for Single-Axis Rate Table System
Temperature Test Chamber for Single-Axis Rate Table System is suitable for environmental simulation tests of moving parts in aerospace electronics and other industries to verify the reliability of the test piece in actual motion.

Model:MQ-ZT-252

Update time:[2019-08-19]
Feature Parameter Standard Compliance

Temperature Test Chamber for Single-Axis Rate Table System

Rich experience: years of experience in designing and manufacturing temperature control test chamber for rate table system, strong technical team support
Complete set of products: temperature control test chamber for single-axis, double-axis, three-axis rate table, multi-spec product
High efficiency and energy saving: reduce power consumption by more than 30% during low temperature test
Excellent performance: performance indicators are better than national military standards
Compact and lightweight: compact and lightweight
Optimize the air duct: based on the professional CFD fluid mechanics design, the wind path is more reasonable
Simple operation: user-friendly operation interface, start and stop, no professional training required
Rich interface: Provide drivers to meet users' secondary development needs
Drying function: dry air pressure dew point temperature -70 ° C, no condensation and fogging
Multiple protection: ensure the safety of personnel, test pieces and equipment, worry-free use

Temperature Test Chamber for Single-Axis Rate Table System



Product name

Temperature Test Chamber for Single-Axis Rate Table System

Nominal volume

Unit/L

100

216

343

512

Inner size

Width × depth × height (mm)

450×450×500

600×600×600

700×700×700

800×800×800

Turntable type

Single-axis turntable, double-axis turntable, three-axis turntable

Corner range

Inner Ring: Continuous Unlimited; Outer Ring: Continuous Unlimited

Performance

index

Temperature range

A,-60℃~100℃  B,-80℃~100℃

Temperature fluctuation

±0.5℃

Temperature uniformity

≤±2.0℃

Temperature deviation

≤±2.0℃

Heating rate

≥2.0/5.0/10.0℃/ Min

Cooling rate

≥2.0/5.0/10.0℃/ Min

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled/water-cooled

Unit installation method

Indoor integrated, indoor split, outdoor split

 Main components









Control System

Siemens programmable controller + touch screen + independent development program

Heating system

Fully independent system, high efficiency stainless steel finned tube heater

Humidifying system

Imported electronic humidity sensor

Cooling System

Importer-type scroll compressor

Circulatory system

Temperature and low noise motor, stainless steel centrifugal impeller

Main materials

Carton material

High-quality carbon steel plate, phosphating electrostatic spray treatment

Inner box material

International standard SUS304# stainless steel mirror treatment

Insulation material

Hard flame retardant polyurethane foam

Sealing material

High and low temperature environment-friendly silicone rubber seal

Cabinet and turntable connection

Bottom flexible seal shaft hole

Voltage

220±10% VAC, L+N+G; 380±10% VAC, 3L+N+G

Communication Interface

RS232 communication interface, USB data interface

Standard configuration

Sample holder 1 set, test lead hole 1 set

Optional accessories

Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge

safety devices

Leakage, short circuit, motor overheating, heater overheating, compressor overpressure, overload, multiple overtemperature protection

Environmental requirements

Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around;

Note:

1.the temperature performance parameters are in the ambient temperature of 25 °C, studio with no load table, effective uniform area, in accordance with GB/T5170.2-2008 test;

2.can be customized according to the specific requirements of non-standard laboratories;

3. This technical information is subject to change without notice.



Standard Compliance :

1.GB/T 10589-2008: cryogenic test chamber technical conditions
2.GB/T 10592-2008: high and low temperature test chamber technical conditions
3. IEC60068-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
4. IEC60068-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
5. IEC60068-2-14 Environmental testing for electric and electronic products-Part 2: Test Methods-Test N: Change of temperature
6. MIL-STD-810F-501.4 High temperature test
7. MIL-STD-810F-502.4 Low temperature test
8.GJB 360B-2009: test methods for electronic and electrical components
9.JJF 1101-2003: environmental and test equipment temperature and humidity
calibration specifications
10.GB/T 5170.2-2008: test method for environmental test equipment of electric and electronic products Temperature test equipment
