Model：MQ-TM-1

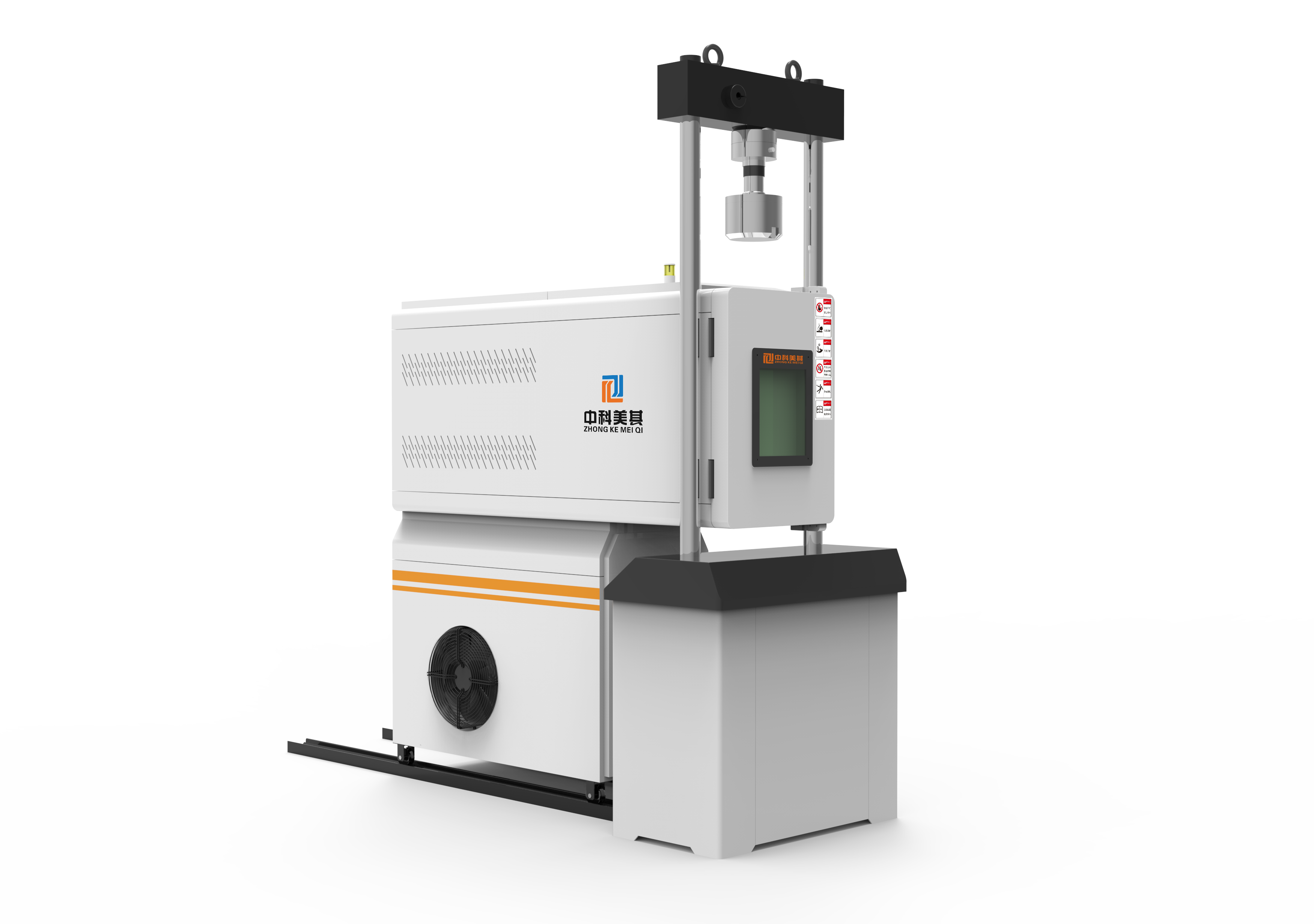

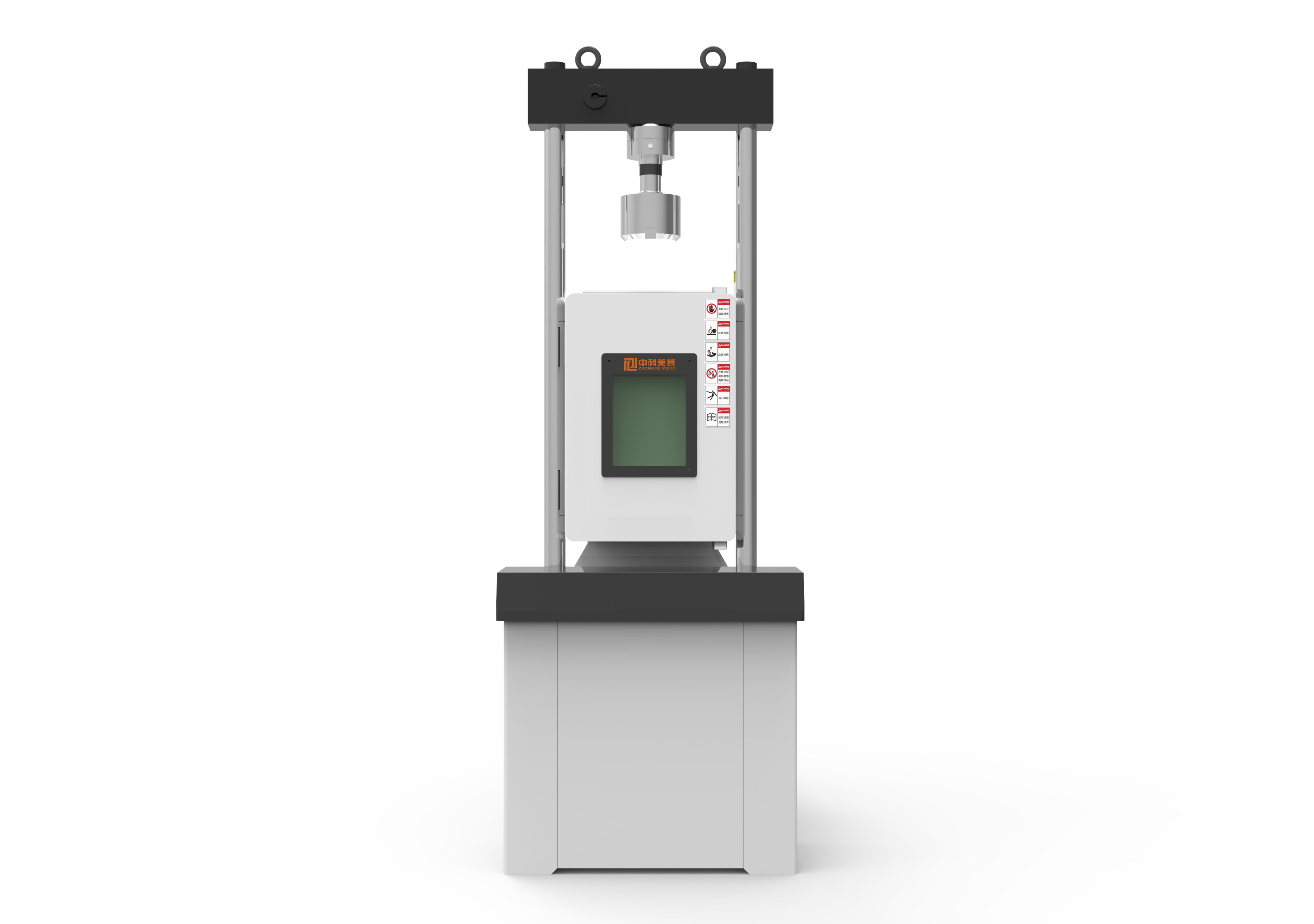

High-Low Temperature Tensile Testing Machine
Application Industries
Universal tensile strength testing machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
High-Low Temperature Tensile Testing Machine
| Maximum load | 10KN(Selection of sensors with different specifications to achieve different accuracy) |
| Accuracy grade | 0.5 class |
| Effective force measurement range | 0.4%~100%(0.5 class) |
| Force measurement precision | Within±0.5% |
| Test machine resolution | Maximum load 1/300000,resolution invariant |
| Trans cell | Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added |
| Effective test width | 400mm(can be widened according to customer requirements) |
| Effective stretch space | 800mm(can be higher by customer requirements) |
| Displacement measurement | Within±0.5% |
| accuracy | |
| Test speed range | 0.01~500mm/min |
| Deformation measurement accuracy |
Within±0.5% ((large deformation or small deformation can be selected according to customer requirements) |
| Overload protection | More than 10% of the maximum load, automatic machine protection |
| Fixture configuration | A set of tensile fixture ,Shearing Accessories |
| Mainframe size | 1200*530*1800mm(long * width * high) |
| Power supply | 220V/50HZ, |
| Power | 0.75KW(according to the different force demand, standard different power motors) |
| Packed weight | 300Kg(include all accessories) |
Standard Comiance :
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards
