Model：MQ-D1500

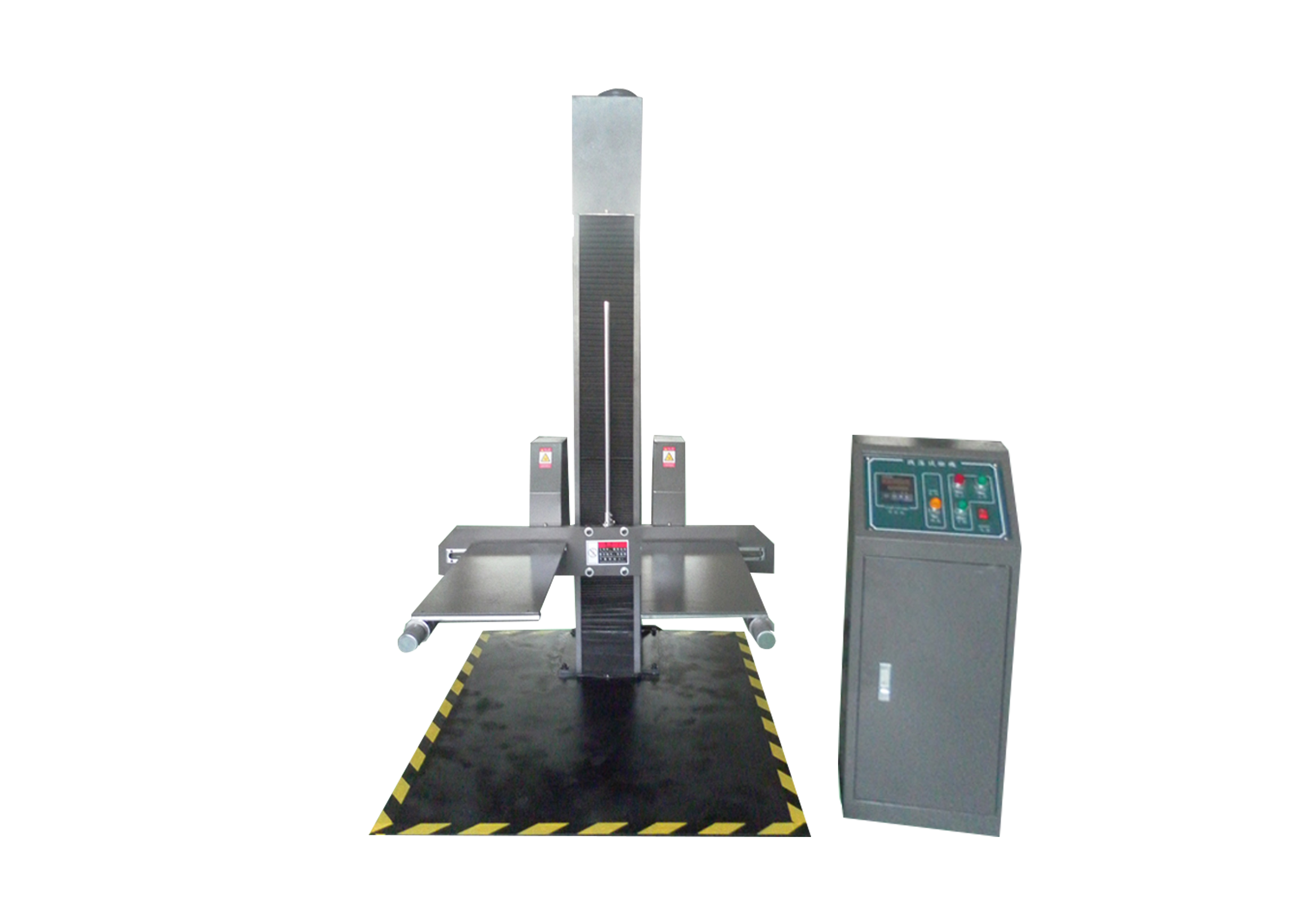

Drop Test Bench
Features:
1) Upper and lower displacement limit, safe and reliable
2)Raise the height of any adjustment to meet the different needs of users
3)Drop bench can clamp drop test on product surface, edge and corner
4)When installing, the customer only needs to place the machine on a flat marble or concrete floor without special foundation

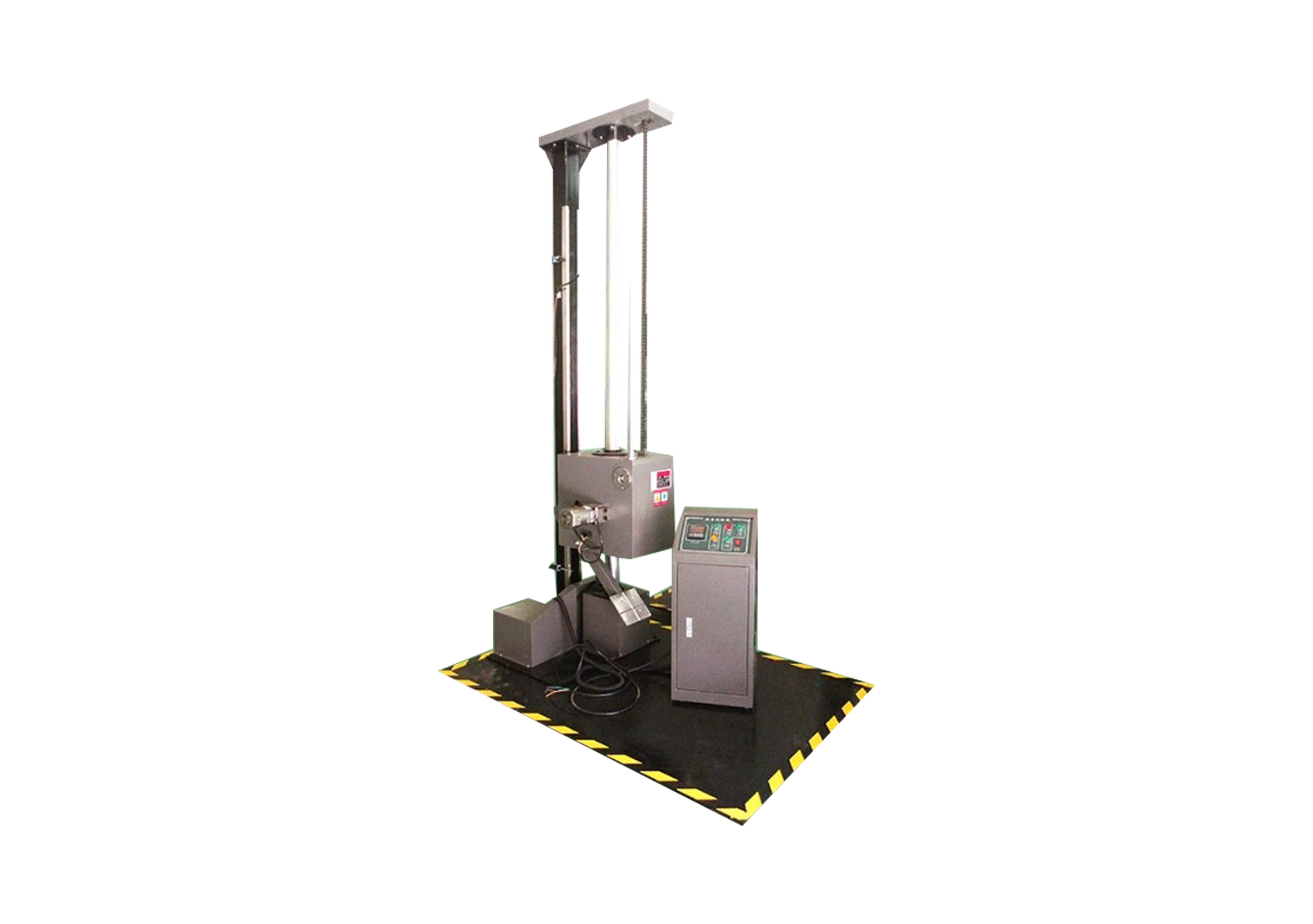

Drop Test Bench
Technical indicators:
|
Product name |
Drop Test Bench |
||
|
Product number |
MQ-D1500 |
MQ-D2000 |
MQ-D2500 |
|
Drop height(mm) |
300~1500 |
300~2000 |
300~2500 |
|
Maximum size of test piece(mm) |
1000×800×1000 |
1000×800×1000 |
1200×800×1000 |
|
Floor size(mm) |
1700×1200×40 1700×1200×16 |
||
|
Maximum load(kg) |
60 100 |
||
|
Falling way |
Electric type(E) Pneumatic(P) |
||
|
experiment method |
Face, edge, corner |
||
|
Height display |
Digital |
||
|
control box |
Split type |
||
|
Table body weight (kg) |
600 800 900 |
||
|
power supply |
380VAC ±10% 50Hz |
||
|
working environment |
Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 40% RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around; |
||
|
Explanation: 1.according to the specific requirements of the user non-standard custom; 2. This technical information is subject to change without notice. |
|||
Standard Compliance :
1)GB/T 4857.5-92 packaging and transportation package drop test method
2)GB/T 2423.5-2008 Environmental testing for electric and electronic products Part 2: Test methods Test Ea and guidelines: Impact
3) ISO2248-1985(E) Packaging - Complete and Fully Filled Transport Packages Vertical Impact Drop Test
4) IEC 68-2-27 Test Method Ea: Impact
