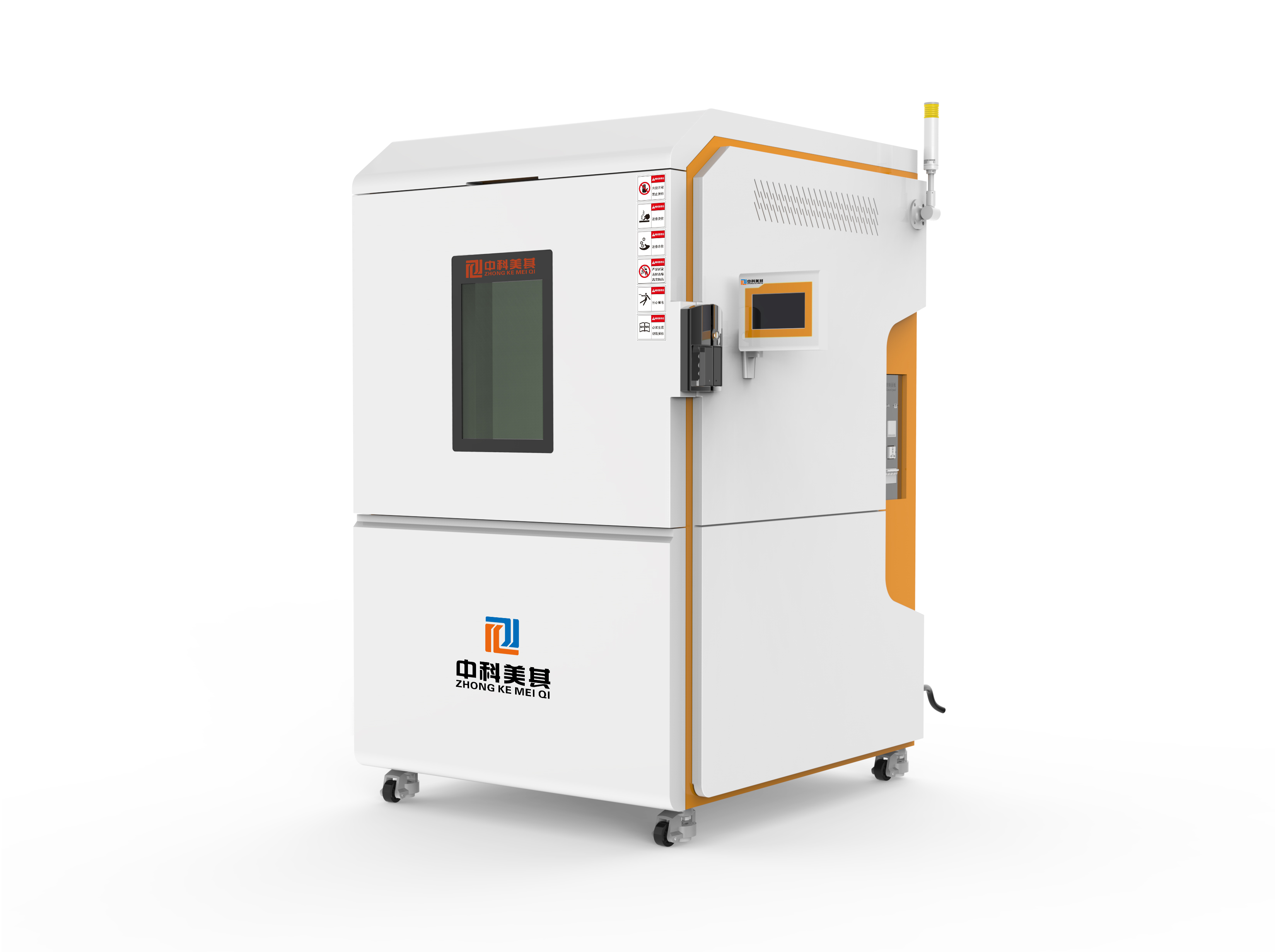

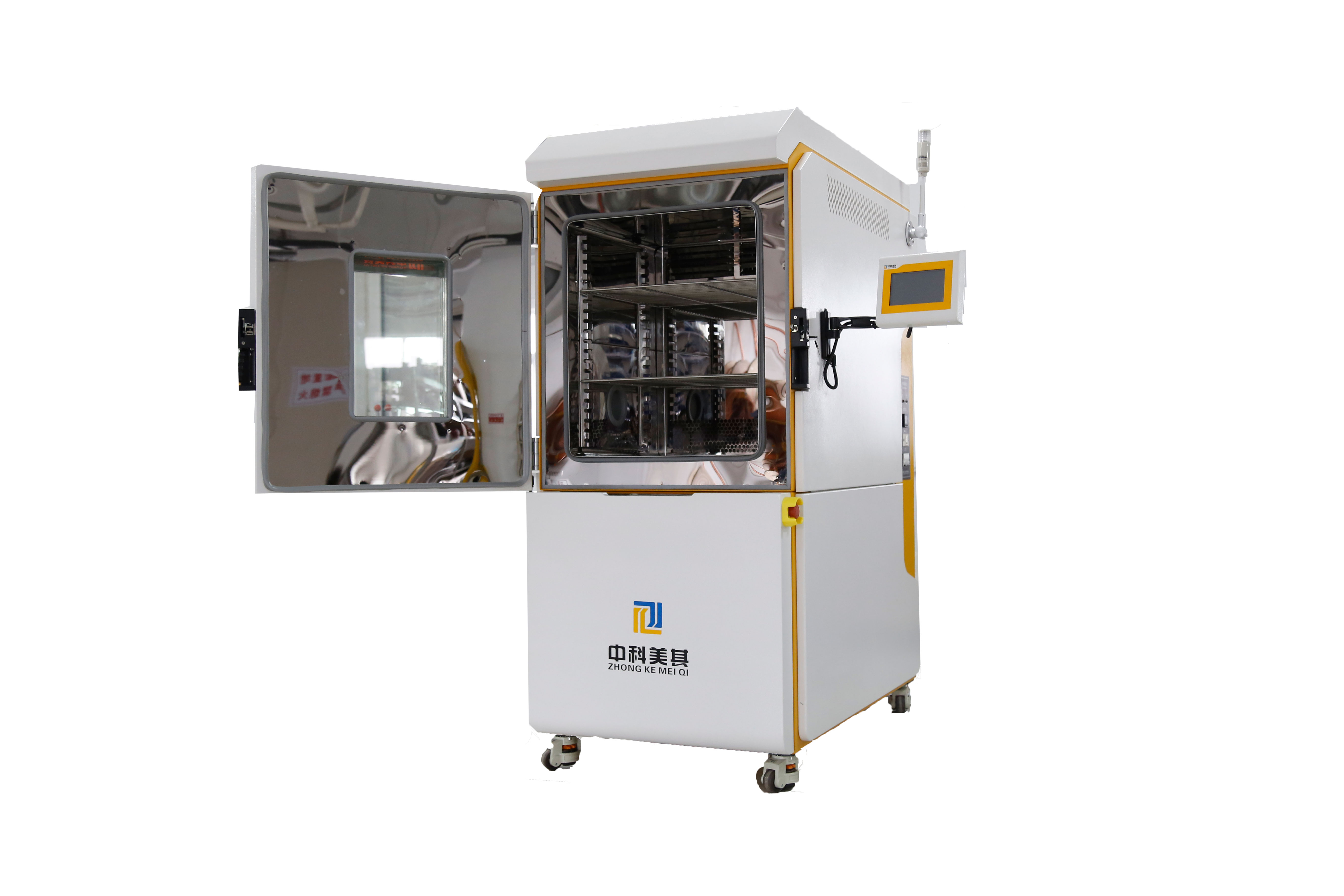

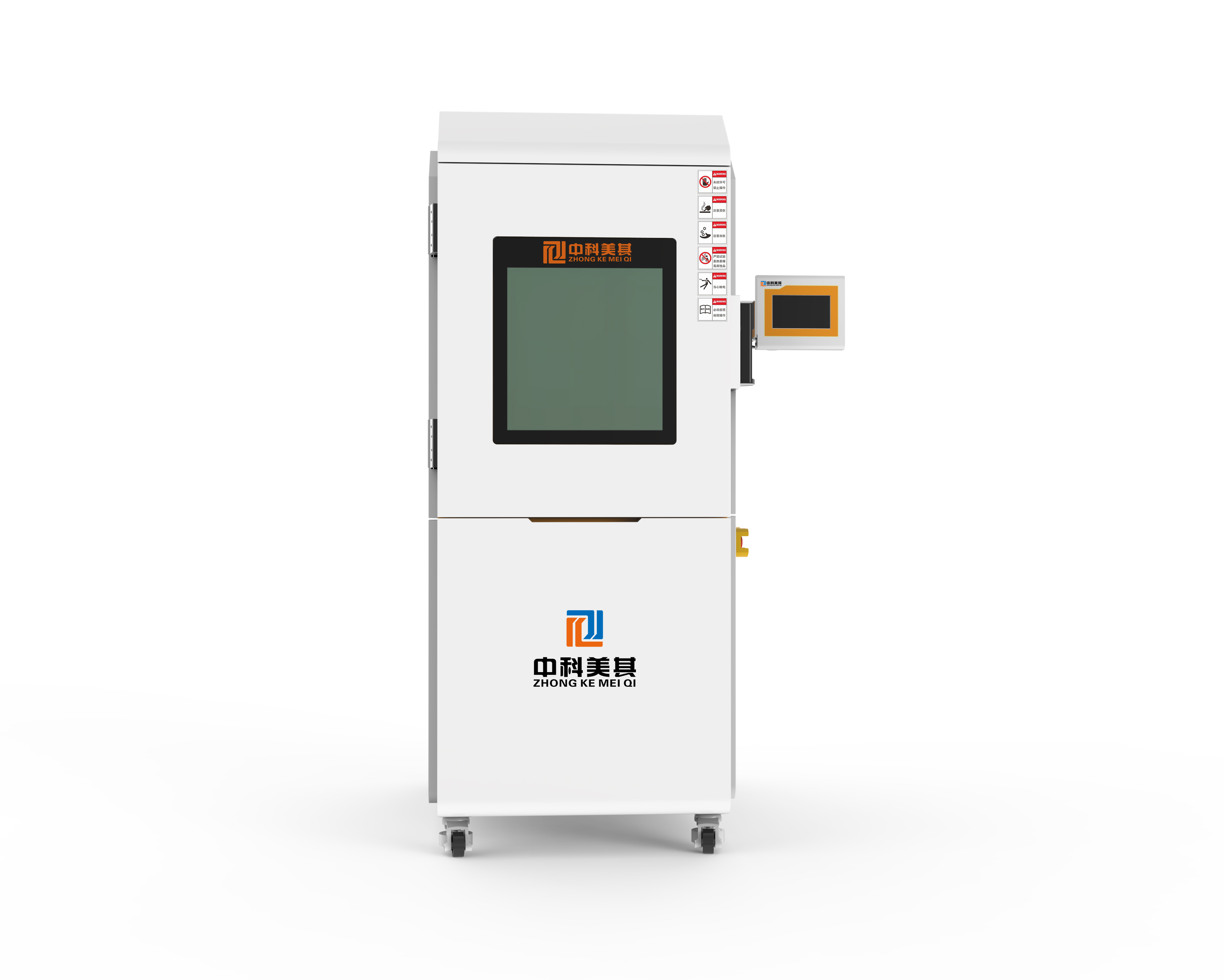

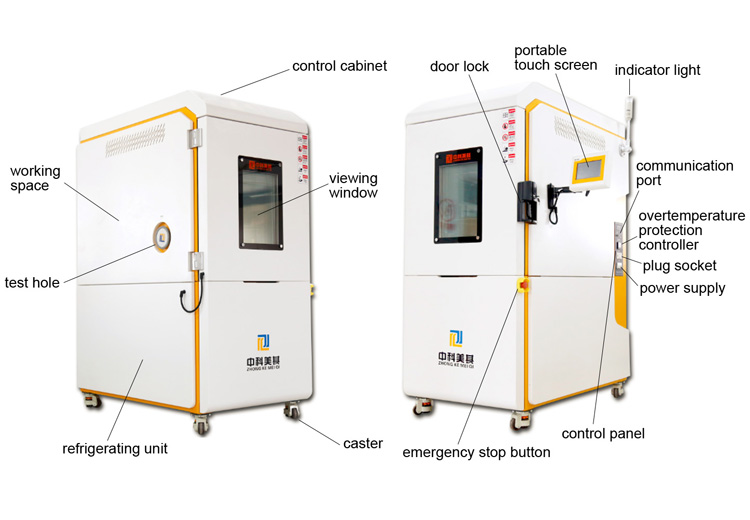

100L Temperature Humidity Test Chamber
High and low temperature test chambers are widely used in aviation, aerospace, electronics, instrumentation, electrical products, materials, automotive parts, plastics and rubber products, chemicals, building materials, medical, photovoltaic and other industries.They test the temperature stress, temperature aging screening, reliability testing, performance testing, weathering test, high temperature storage of test pieces under high temperature and environmental conditions.

Model:MQ-TH100F-2

Update time:[2019-10-08]
Feature Parameter Standard Compliance

100L Temperature Humidity Test Chamber



product name

High and low temperature test chamber

Product number

MQ-T100F-2

MQ-T250F-2

MQ-T500F-2

MQ-T1000F-2

Nominal volume

unit/L

100

250

500

1000

Inner size

Width × depth × height (mm)

450×450×500

600×600×700

750×750×900

1000×1000×1000

External size

Width × depth × height (mm)

650×1000×1450

800×1200×1700

950×1400×1900

1200×1500×1950

Performance

Temperature range

A,-40℃~150℃   B,-70℃~150℃  C,-90℃~150℃  D,-120℃~150℃

Temperature fluctuation

±0.5℃

Temperature uniformity

≤2.0℃

Temperature deviation

≤±2.0℃

Heating rate

≥2.0℃/ Min

Cooling rate

≥2.0℃/ Min

Linear temperature control

0.5~1.0℃/Min

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled

The main components

Control System

Siemens programmable controller + touch screen + independent development program

Heating system

Fully independent system, high efficiency stainless steel finned tube heater

Cooling System

Importer-type scroll compressor

Circulatory system

Temperature and low noise motor, stainless steel centrifugal impeller

Use materials

Carton material

High-quality carbon steel plate, phosphating electrostatic spray treatment

Inner box material

International standard SUS304# stainless steel mirror treatment

Insulation material

Hard flame retardant polyurethane foam

Sealing material

High and low temperature environment-friendly silicone rubber seal

voltage

380±10% VAC,50Hz,3L+N+G

Communication Interface

RS232 communication interface, USB data interface

Standard configuration

Sample holder 1 set, test lead hole 1 set

Optional accessories

Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge

safety devices

Leakage, short circuit, motor overheating, heater overheating, compressor overpressure, overload, multiple overtemperature protection

Environmental requirements

Ambient temperature: 5~35°C, relative humidity: ≤85%RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around

Note:

1.temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;

2. according to the specific requirements of users customized non-standard high and low temperature test box;

3. This technical information is subject to change without notice.

100L Temperature Humidity Test Chamber



Technical indicators

Product name

High and low temperature hot and humid test chamber

Product model

MQ-TH100F-2

MQ-TH250F-2

MQ-TH500F-2

MQ-TH1000F-2

Nominal volume

unit/L

100

250

500

1000

Inner size

Width × depth × height (mm)

450×450×500

600×600×700

750×750×900

1000×1000×1000

External size

Width × depth × height (mm)

650×1000×1450

800×1200×1700

950×1400×1900

1200×1500×1950

Performance

index

Temperature range

A,-40℃~150℃   B,-70℃~150℃  C,-90℃~150℃  D,-120℃~150℃

Humidity range

A,10%~98%RH           B, 20%~98%RH        C, 30%~98%RH

Temperature fluctuation

±0.5℃

Humidity fluctuation

≤±2%RH

Temperature uniformity

≤2.0℃

Temperature deviation

≤±2.0℃

Humidity deviation

Humidity>75%RH:≤+2,-3%RH; Humidity<75%RH:≤±5%RH

Heating rate

≥2.0℃/ Min

Cooling rate

≥2.0℃/ Min

Linear temperature control

0.5~1.0℃/Min

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled

 Main components

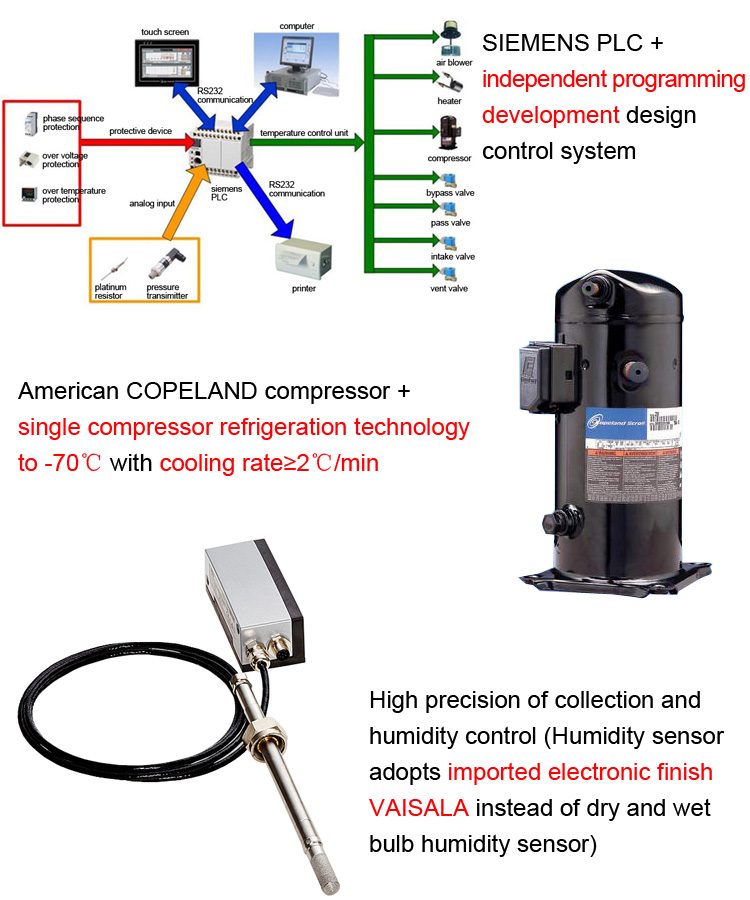

Control System

Siemens programmable controller + touch screen + independent development program

Heating system

Fully independent system, high efficiency stainless steel finned tube heater

Humidifying system

Imported electronic humidity sensor

Cooling System

Importer-type scroll compressor

Circulatory system

Temperature and low noise motor, stainless steel centrifugal impeller

Main  materials

Carton material

High-quality carbon steel plate, phosphating electrostatic spray treatment

Inner box material

International standard SUS304# stainless steel mirror treatment

Insulation material

Hard flame retardant polyurethane foam

Sealing material

High and low temperature environment-friendly silicone rubber seal

voltage

380±10% VAC,50Hz,3L+N+G

Communication Interface

RS232 communication interface, USB data interface

Standard configuration

Sample holder 1 set, test lead hole 1 set

Optional accessories

Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge

safety devices

Leakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection

Environmental requirements

Ambient temperature: 5~35°C, relative humidity: ≤85%RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around





Standard Compliance :

1. IEC60068-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC60068-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. IEC60068-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat, cyclic (12h+12h cycle)
4. IEC60068-2-78 Environmental testing - Part 2-78: Tests -Test Cab: Damp heat ,steady state
5. MIL-STD-810F-501.4 High temperature test
6. MIL-STD-810F-502.4 Low temperature test
7. MIL-STD-810F-507.4 Damp heat test
8.GB/T 10589-2008: cryogenic test chamber technical conditions
9.GB/T 10592-2008: high and low temperature test chamber technical conditions
10.GJB 360B-2009:test methods for electronic and electrical components
11.JJF 1101-2003: environmental and test equipment temperature and humidity calibration specifications
12.GB/T 5170.2-2008:test method for environmental test equipment of electric and electronic products Temperature test equipment
13.GB/T 5170.5-2008:test methods for environmental testing equipment for electric and electronic products humidity test equipment
